Selecting appropriate construction materials for wastewater treatment systems plays a critical role in determining long-term structural durability and operational cost efficiency. Many enterprises focus mainly on treatment capacity and upfront costs, often overlooking material choices — a factor that directly influences corrosion resistance and asset longevity, especially in harsh wastewater environments.
Why Material Selection Matters
In wastewater streams — particularly industrial effluent — aggressive constituents such as sulfuric acid (H₂SO₄) and chloride ions (Cl⁻) can accelerate corrosion of tanks, piping, and equipment. Inadequate material durability may lead to frequent repairs, leakage risks, operational downtime, and higher maintenance costs. Choosing the right materials upfront contributes to stable long-term performance and compliance with discharge standards.

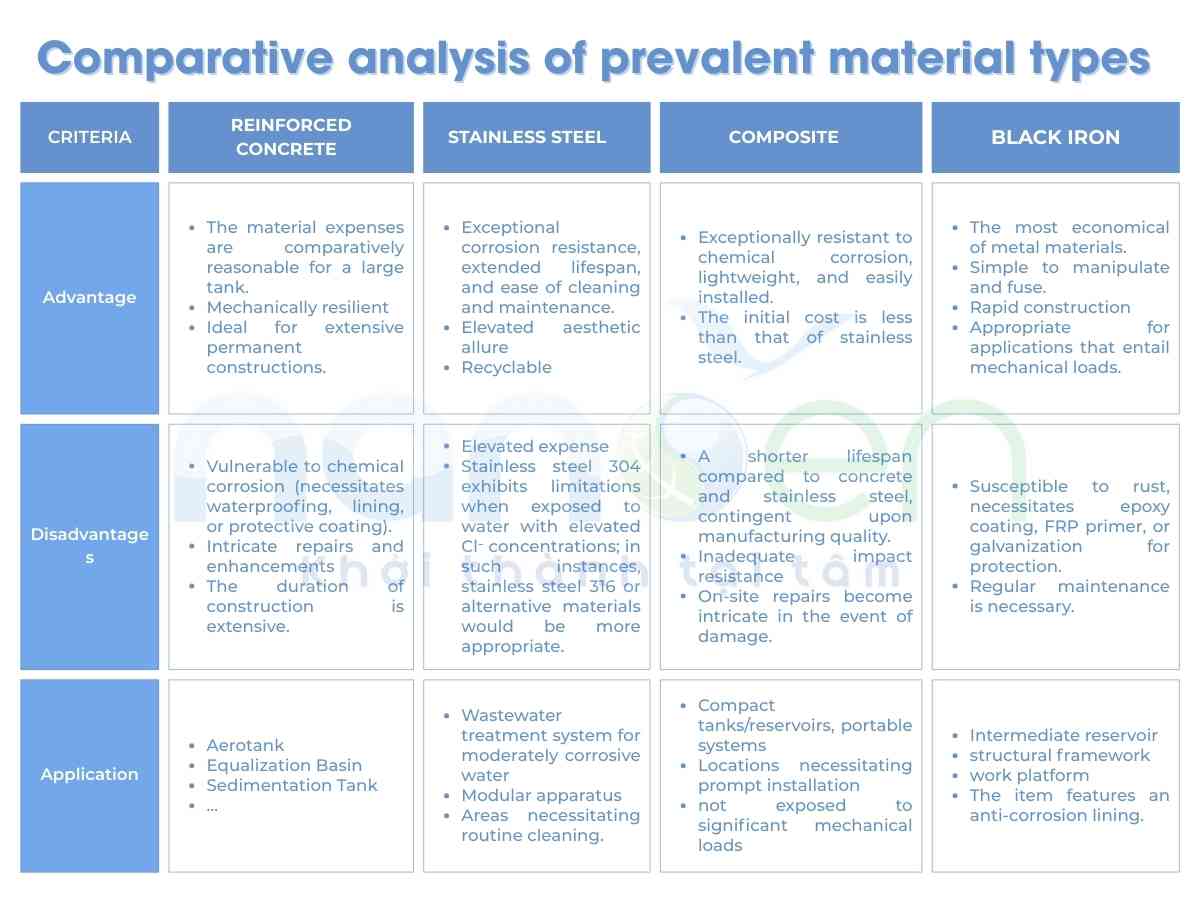

Common Materials Used in Wastewater Treatment Systems

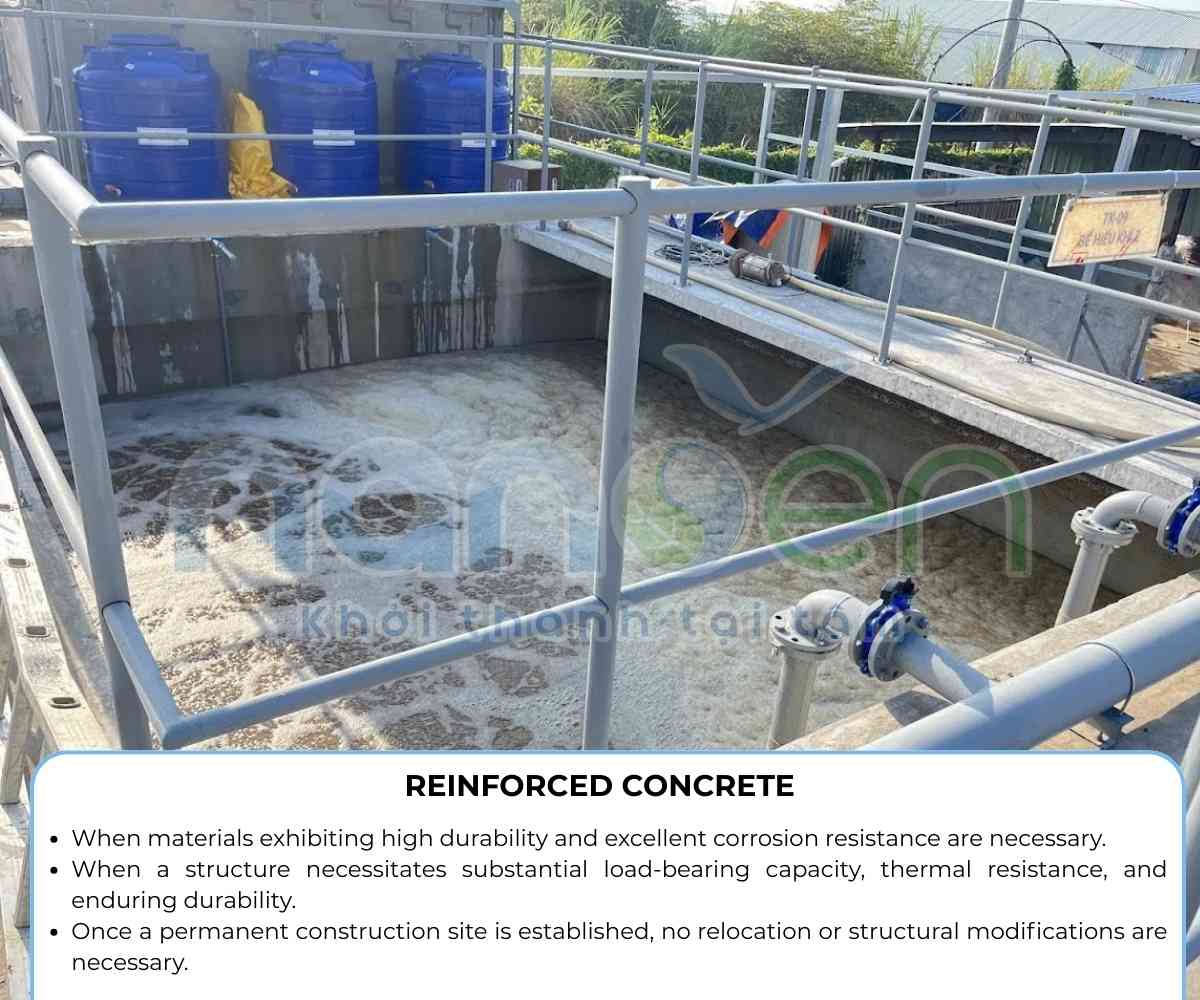

1. Reinforced Concrete
Reinforced concrete structures are widely used for primary settling tanks, aerobic basins, and equalization tanks due to their high load-bearing capacity and cost effectiveness — especially suitable for fixed installations.

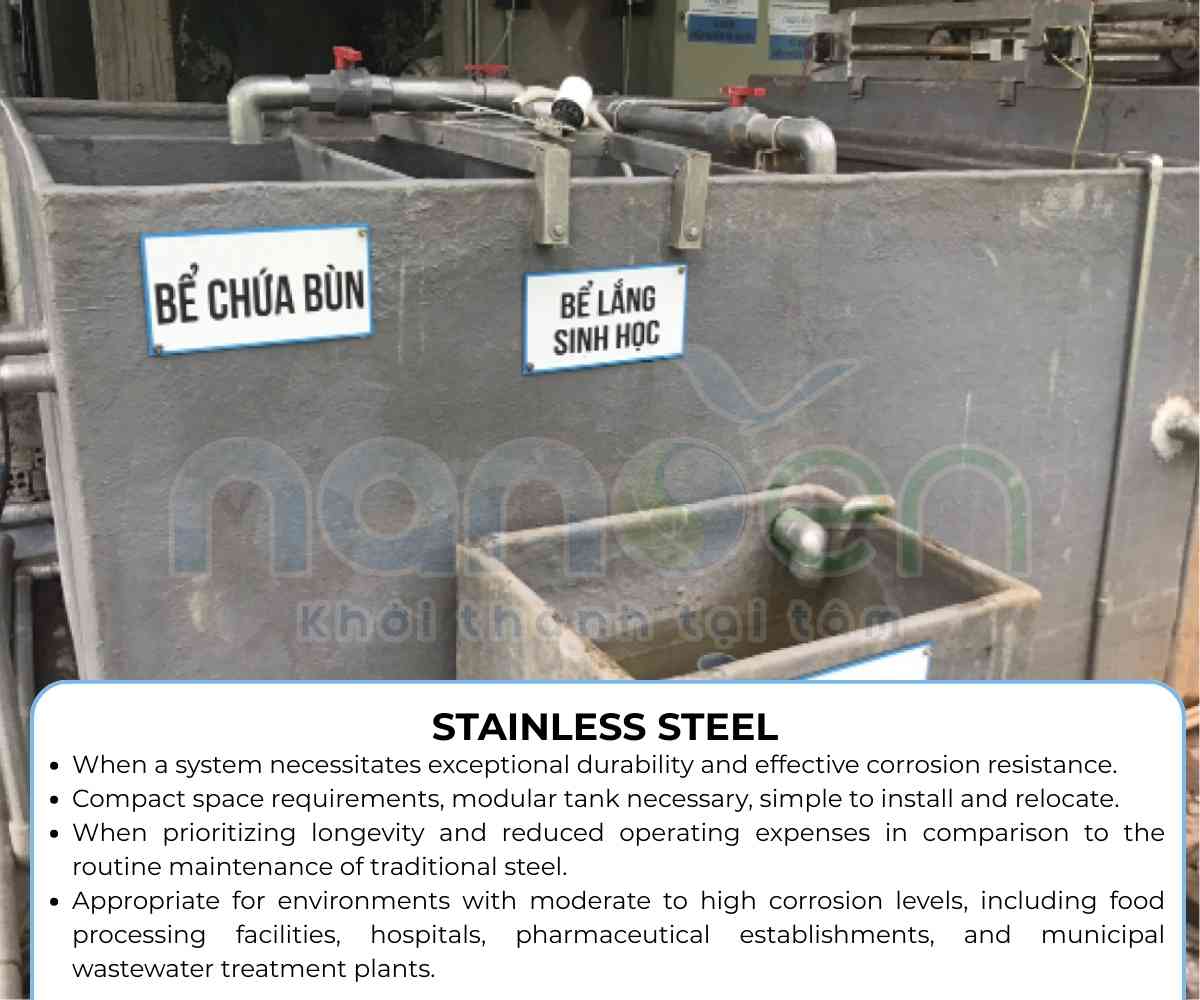

2. Stainless Steel (SS 304, 316, etc.)
Stainless steel — particularly SS 316 — offers superior corrosion resistance and is commonly used for chemical contact equipment, modular tanks, and smaller process units. Its smooth surface facilitates cleaning and minimizes fouling.

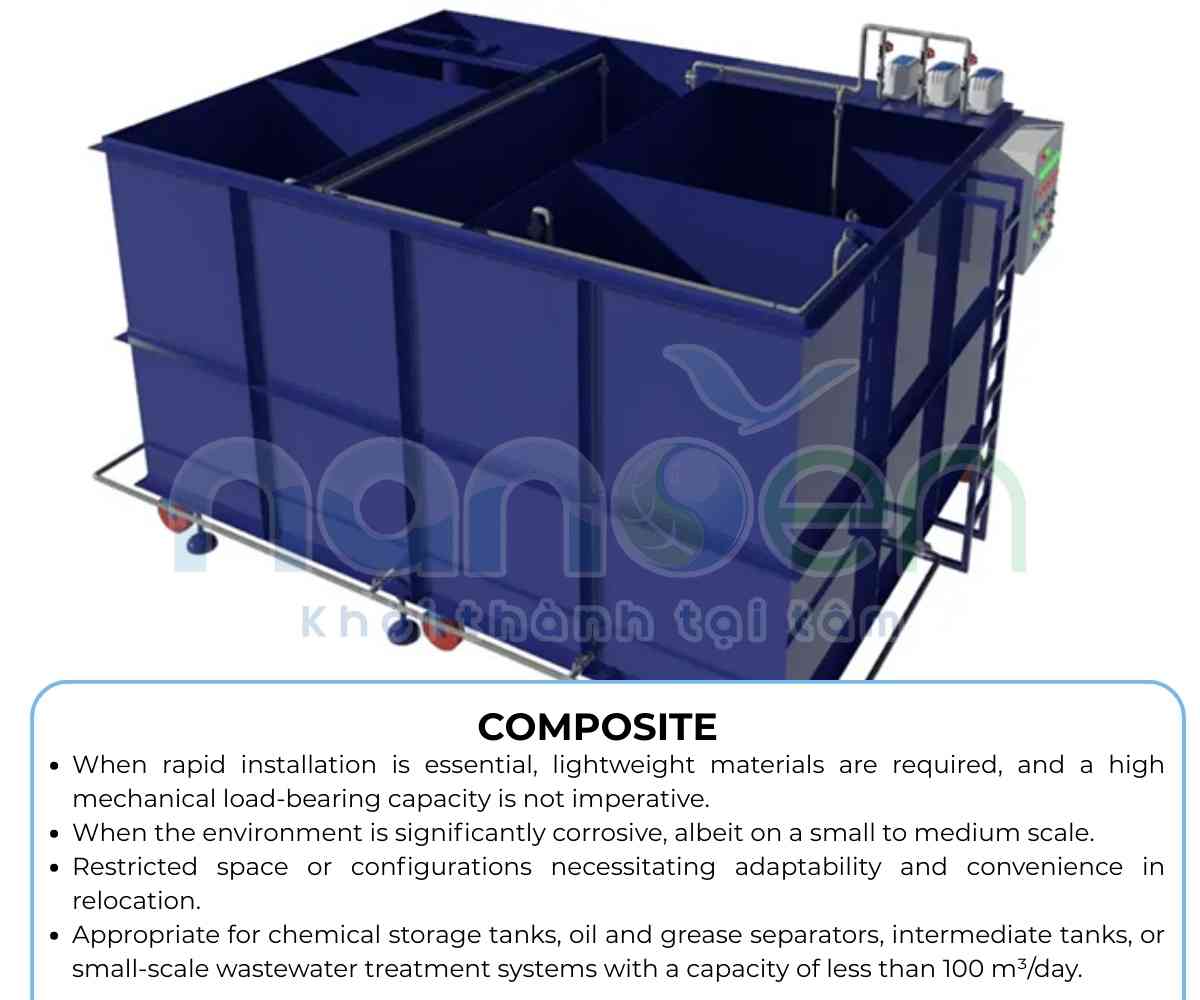

3. Fiber-Reinforced Polymer (FRP / Composite)
Composite materials such as fiber-reinforced polymer (FRP) provide a lightweight, corrosion-resistant option. These are especially effective for compact or prefabricated modular systems that require rapid installation and chemical resistance.

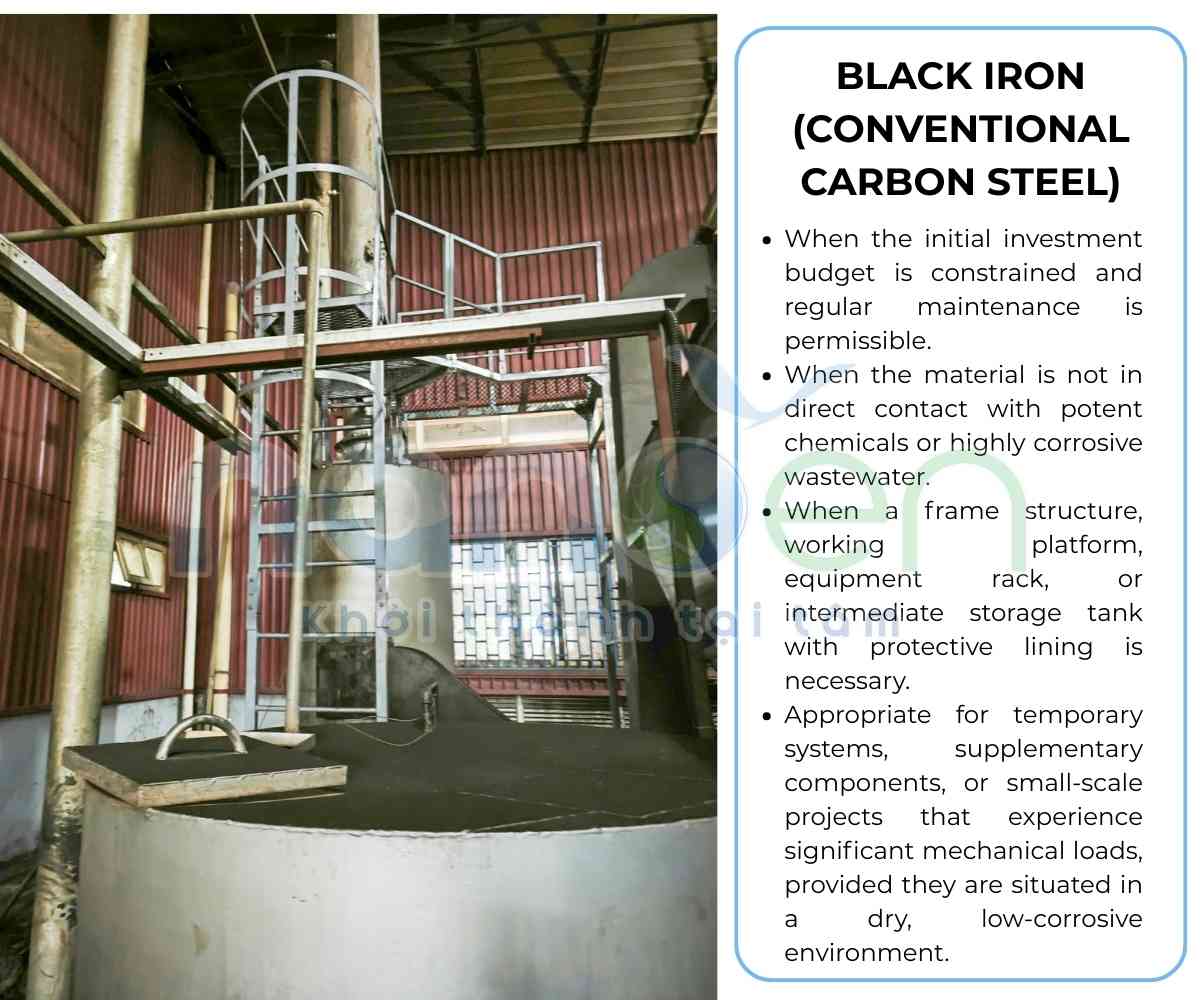

4. Carbon Steel (Black Steel)
Carbon steel is typically used for framework, intermediate containment, or non-process structural elements. While cost-effective, it requires protective coatings and regular maintenance to mitigate corrosion.
Factors Influencing Material Selection
When evaluating materials for wastewater treatment installations, key parameters include:
-
Operating environment: pH, temperature range, H₂S and Cl- concentrations
-
Scale and design configuration: fixed concrete tanks vs modular stainless or composite units
-
Capital vs operating costs: Long-term durability and low maintenance favor stainless or protected concrete for many industrial applications
-
Construction schedule: Modular systems (stainless/composite) generally enable faster on-site installation than cast-in-place concrete structures
Choosing optimal materials enhances structural resilience, improves operation stability, and reduces total lifecycle costs — while ensuring treated effluent meets environmental discharge standards.
Comprehensive Turnkey Wastewater Treatment Solutions
Instead of procuring and implementing disparate system components separately, Nanoen offers end-to-end wastewater treatment solutions that control costs, save time, and ensure regulatory compliance.
1. Site Survey & Tailored Consultation
Each facility has distinct wastewater characteristics and regulatory requirements. Nanoen engineers conduct site assessments — including influent flow and pollutant load analysis — and propose treatment technologies optimized for performance, cost, and compliance.
2. System Design Optimization
Based on preliminary data, 2D and 3D designs are developed for tanks, piping, and equipment layout. Every detail is optimized to minimize footprint, ensure structural integrity, and conform to current Vietnamese discharge regulations (e.g., QCVN 14:2025/BTNMT and QCVN 40:2025/BTNMT).
3. Professional Construction & Installation
Nanoen ensures quality installation with experienced technicians and trusted brand equipment (pumps, blowers, diffusers, etc.) that have certified quality and performance documentation (CO/CQ).
4. Commissioning & Technology Transfer
After construction, biological seeding and test runs are performed to fine-tune parameters until effluent consistently meets discharge standards. Comprehensive operator training and documentation are provided, enabling effective in-house system management.
Benefits of Choosing the Right Material Early
Proper material selection at the initial project stage not only enhances durability and stability but also contributes to lower lifecycle operating costs and sustained regulatory compliance — essential for the long-term environmental and commercial success of industrial wastewater treatment systems.
