Super shallow flotation tanks have outstanding advantages because they take up little space, save chemicals, and have low operating costs, so they are often used by many businesses to pre-treat wastewater, recover products, and compress biological sludge in the food processing, paper, and petroleum industries, etc.
Source: Nano Environment Company;

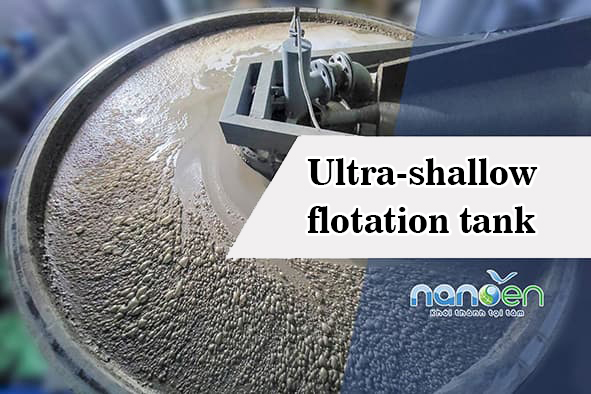

Super shallow flotation tank produced by Nano mechanical workshop
Operating principle
The super shallow flotation tank when operating needs an additional high-pressure wastewater tank called a pressure tank. Part of the wastewater after flotation will be put into this tank and air will be compressed here at a pressure of several atmospheres to dissolve into the wastewater.
Then, the water from the pressure tank will be mixed into the wastewater that needs to be flotation and put into the flotation tank (atmospheric pressure). At this time, the amount of air dissolved in the wastewater at pressure will be released back into the atmosphere in the form of small air bubbles. These air bubbles will adhere to the solid particles, creating a force to lift these solid particles to the surface of the tank, then these solids are removed by the skimmer system.
Source: Nano Environment Company; photo taken from actual construction site
DAF tank structure
The flotation tank is usually composed of the following components:
-
DAF tank made of 304 stainless steel;
-
Flocculation system;
-
Pressure tank;
-
Air compressor;
-
Horizontal pump;
-
Pressure control unit;
-
Scraper drive motor;
-
Bottom sludge discharge device;
-
Custom system setting control panel.
DAF tank design parameters
-
Pressure: 1.7 - 3.4 atm;
-
A/S ratio: 0.02 - 0.05;
-
Surface water loading: 20 - 325 m3/m2*day;
-
Retention time in the pressure tank: 0.5 3.0 minutes;
-
Retention time in the flotation tank: 20 - 60 minutes;
-
Recirculation ratio: 5 - 120%.
Source: Nano Environment Company; photo taken from actual construction site
ADVANTAGES AND DISADVANTAGES OF FLOTATION TANK
-
Advantages:
- If the DAF tank is well designed and the coagulant is used properly, the SS removal efficiency can reach 95 - 99%;
- If the input grease is from 1,000 - 16,000 mg/L, the output can be 5 mg/L (commonly about 15 mg/L).
-
Disadvantages:
- High initial investment cost and complicated equipment maintenance;
- Requires skilled operators;
- Complex structure, pressure control process is quite difficult.
The super shallow flotation tank is an advanced solution specially designed for wastewater treatment systems. With the ability to effectively remove solids, the DAF tank helps improve wastewater quality and reduce the load on the treatment system.
